The SystemWeaver® Platform

The SystemWeaver platform is part of the implementation of the SystemWeaver concept.

The SystemWeaver platform is an infrastructure used for:

  • maintaining consistency in design information
  • distribution of consistent design information
  • integration of design processes

Instead of storing documents that contains information of the different "system building blocks" or components, SystemWeaver connects the information to the components themselves.

SystemWeaver uses one source of information – a distributed database - from which different views of the systems can be generated. The engineer only needs to enter information once and the information can then be viewed from different aspects. This cannot be achieved with a document centric development methodology, or even the hybrid model/document implementation of model based development as practised today!

A SystemWeaver Shuttle/Client can be any development tool creating and using design information.

Information is accessed through the SystemWeaver API, ensuring data integrity and security. The API also encapsulates the SystemWeaver Meta Model.

The platform is a multi-tier solution (client-server) with support for access control, secure communication, server and client side cache as well as support for powerful configuration management.

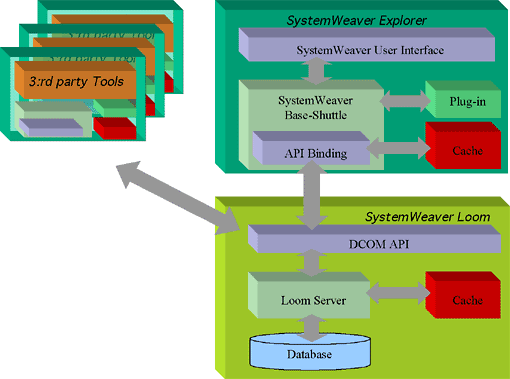

SystemWeaver - Platform Architecture

Features:

  • Server and Client side caching offers efficient access to system/product models
  • Well defined Platform interfaces and state-of-the-art commercial technology offers a stable and scalable Platform.
  • Configuration Management on all model parts enables concurrent model changes without loss of control
  • Access control on all model parts enables efficient and secure sharing of models in multiple organization projects
  • Performance virtually Independent of no. of users
  • Performance virtually Independent of model size
  • Scalable to reasonable cost!
  • High degree of maintanability since COTS technology is used in all maintenance critical parts: COMM, DB etc

SystemWeaver platform, a Hub for systems development !
